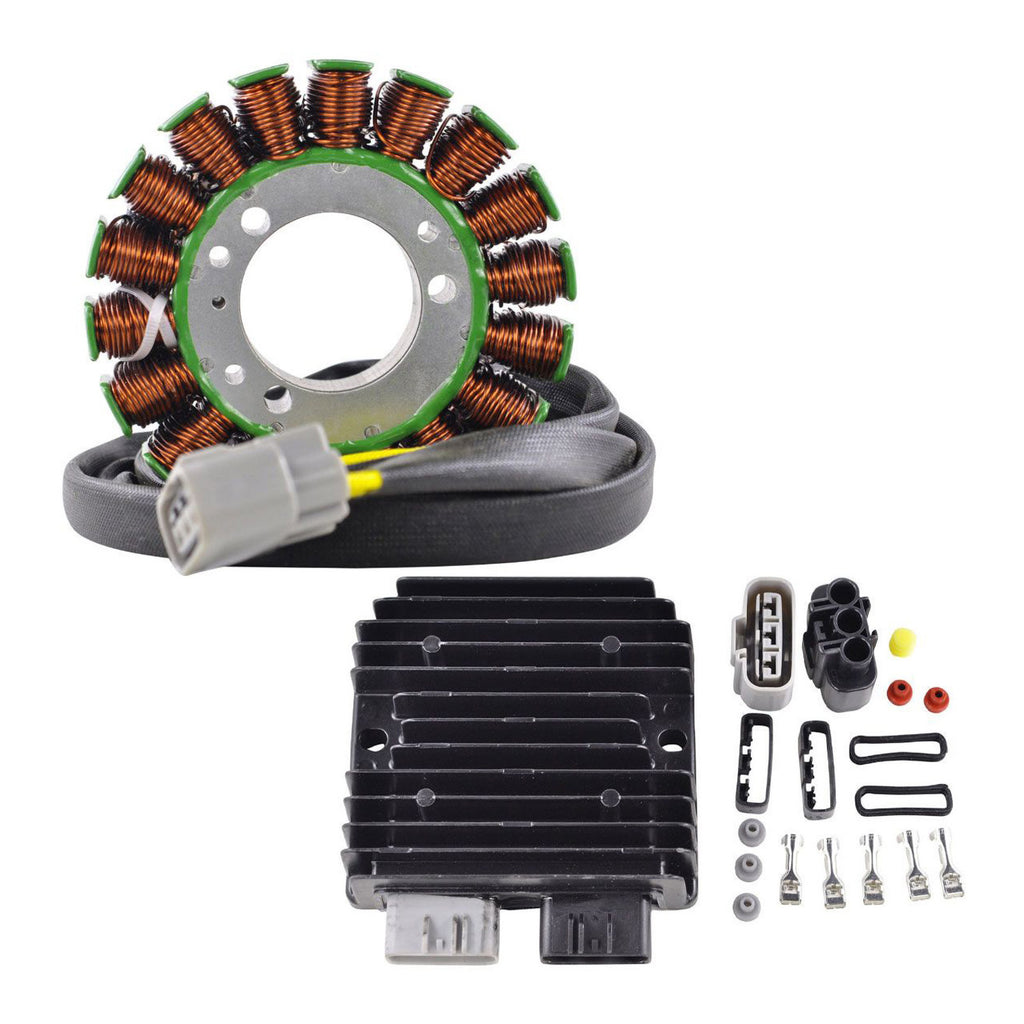

Brand new aftermarket stator and MOSFET voltage regulator kit.
Product images are accurate. If in doubt, compare the item with the original part to confirm compatibility.
- Direct replacement for the original unit.
- Plug-and-play, direct fit and easy installation.
- All products are tested before shipping.

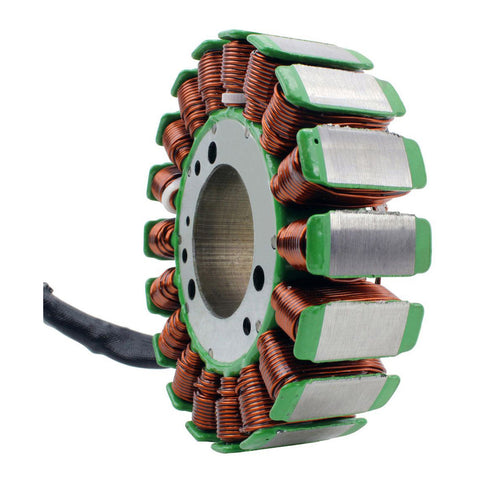

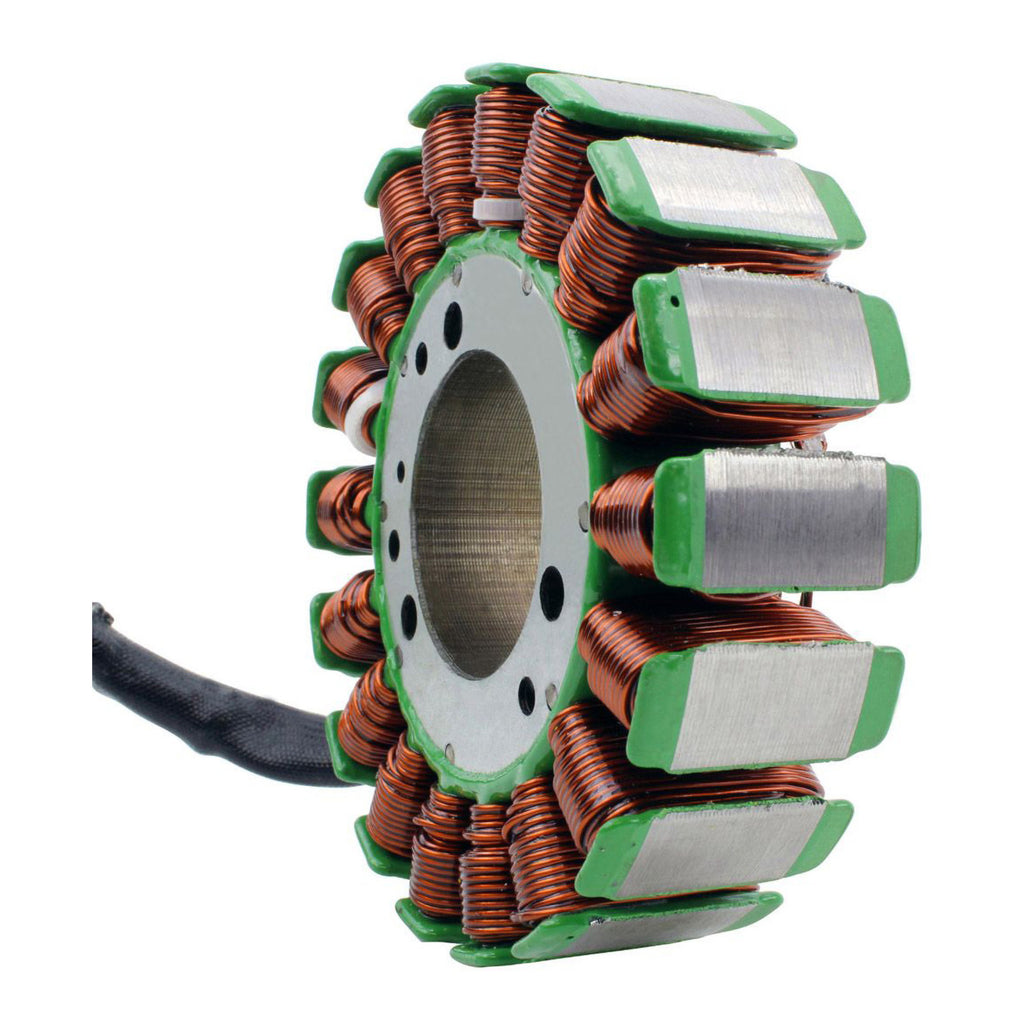

Stator Features:
- High-grade lamination materials.
- High-grade copper windings, resistant to temperatures up to 200°C.
- Connector included.
- Rubber grommet included.
MOSFET Voltage Regulator:
The MOSFET voltage regulator rectifier is designed to run cooler than traditional shunt and OEM diode-style regulators. Its overheat protection temporarily switches the unit off to allow it to cool down, helping prevent damage from overheating.
- Runs cooler than traditional shunt voltage regulator rectifiers.
- Reduces the load on the stator, helping reduce engine workload and fuel consumption.
- Provides steadier, smoother battery charging.
- Helps extend battery life and cold-cranking capacity.
- Reduces stator load to help free up engine power.
- Advanced design lowers operating temperatures for improved longevity and performance.
- Optimises power delivery by switching the stator coils on or off.
- Improved heat sink and charging capabilities.
- Higher-grade electrical components and quality that exceeds OEM equipment.
Before Installing the Stator and Voltage Regulator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator/rectifier.
- Check and repair any melted wiring.
- Apply high-temperature dielectric grease to all connectors.
The stator may use a different wire colour code from the original. All wires are installed in the correct order. Do not change the wiring configuration. This stator is designed as a direct plug-in replacement.
Always use thread-locking compound when installing the stator. If the stator includes a pickup coil, ensure the air gap is correctly adjusted. Set it as close as possible, but no less than 0.010 inches.
Opposite connector (main harness side) included. These connectors are commonly affected by melting, corrosion and defects, which can cause recurring electrical problems.
Warning: Risk of electric shock. Disconnect the battery before servicing. Installation should be carried out by a qualified technician to avoid malfunction.
Stator Dimensions:
- Interior diameter: 42 mm
- Exterior diameter: 115 mm
- Thickness: 24 mm
- Stator-to-grommet wire length: 150 mm
- Grommet-to-plug wire length: 1,470 mm
Other Stator Specifications:
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
- Number of poles: 18
- Alternator resistance: Yellow wire to yellow wire: 0.4 ohms ±20%
Regulator Dimensions:
- Width: 120 mm
- Length: 111 mm
- Height: 35 mm
- Mounting hole centre-to-centre distance: 94 mm
Other Regulator Specifications:
- Number of plugs: 2
- Number of pins: 5
