Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- All product shipped are tested

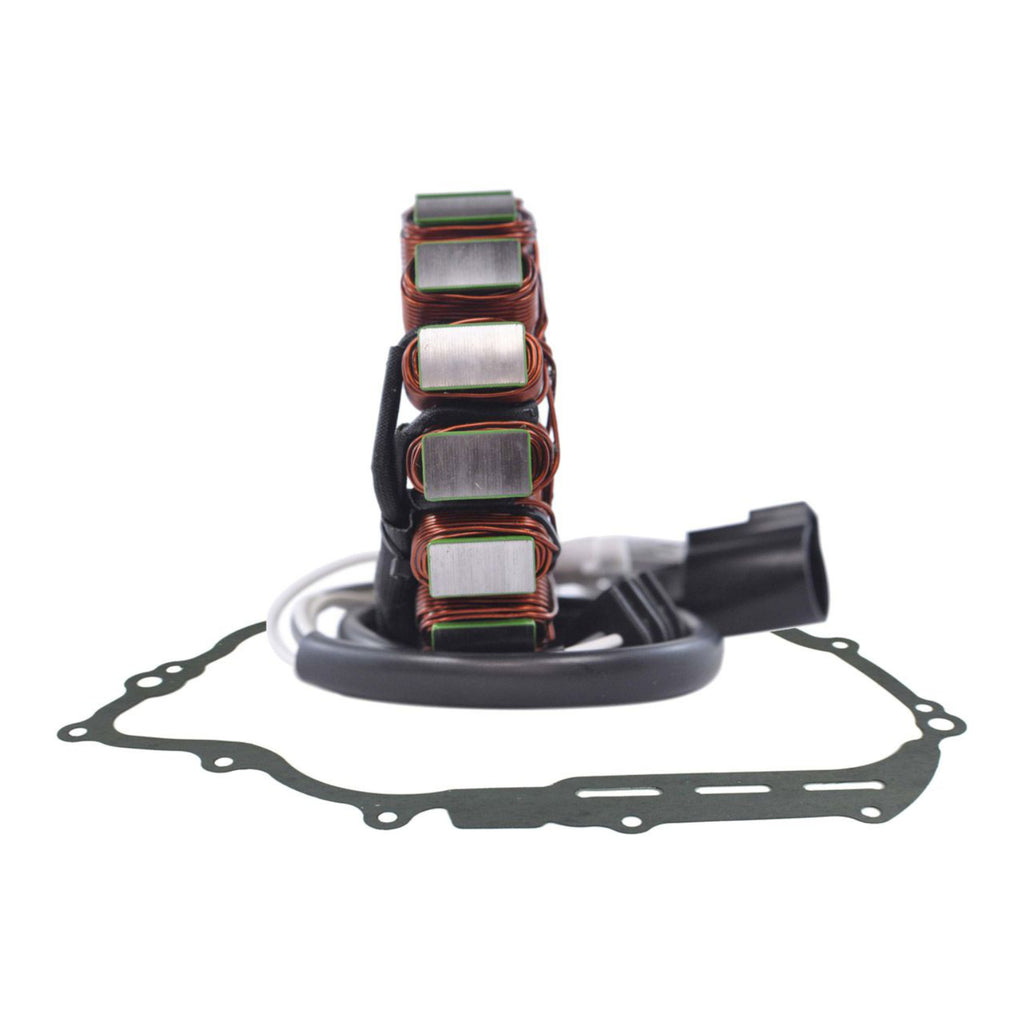

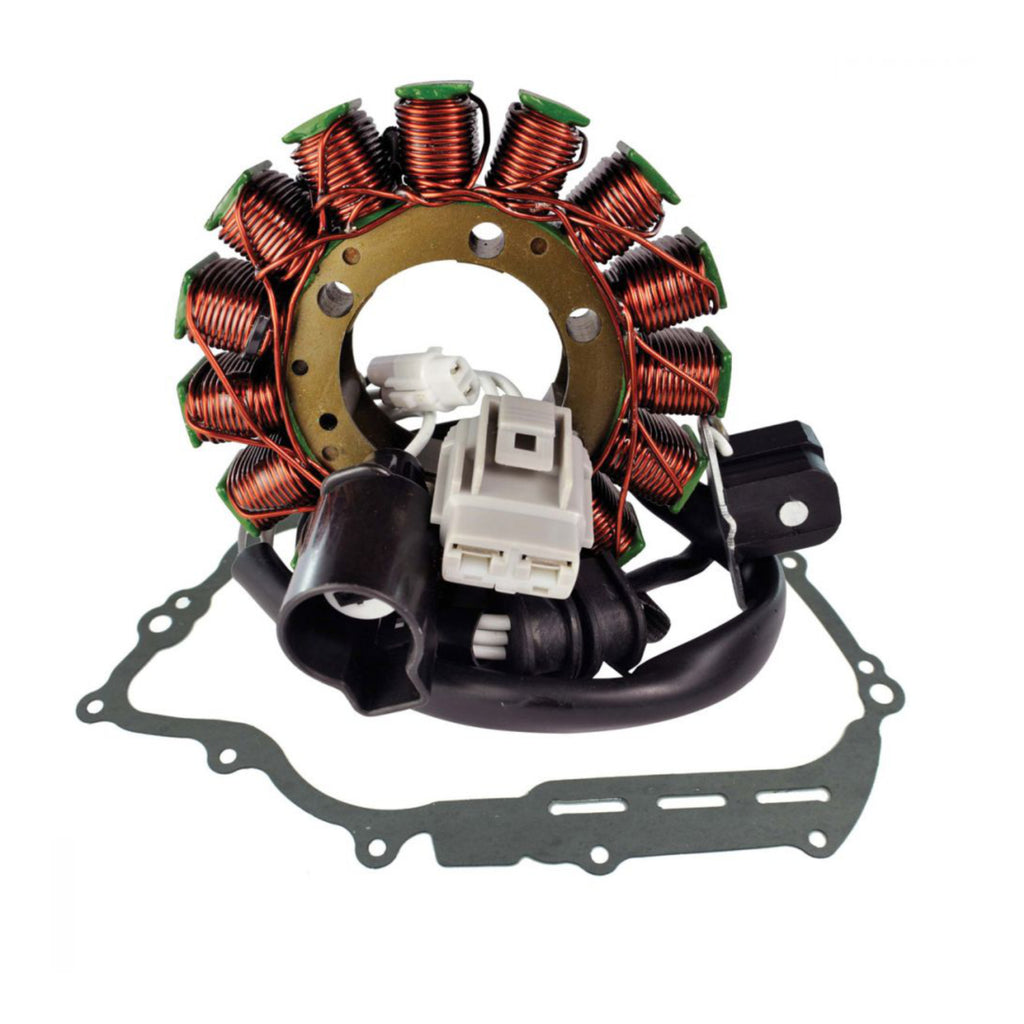

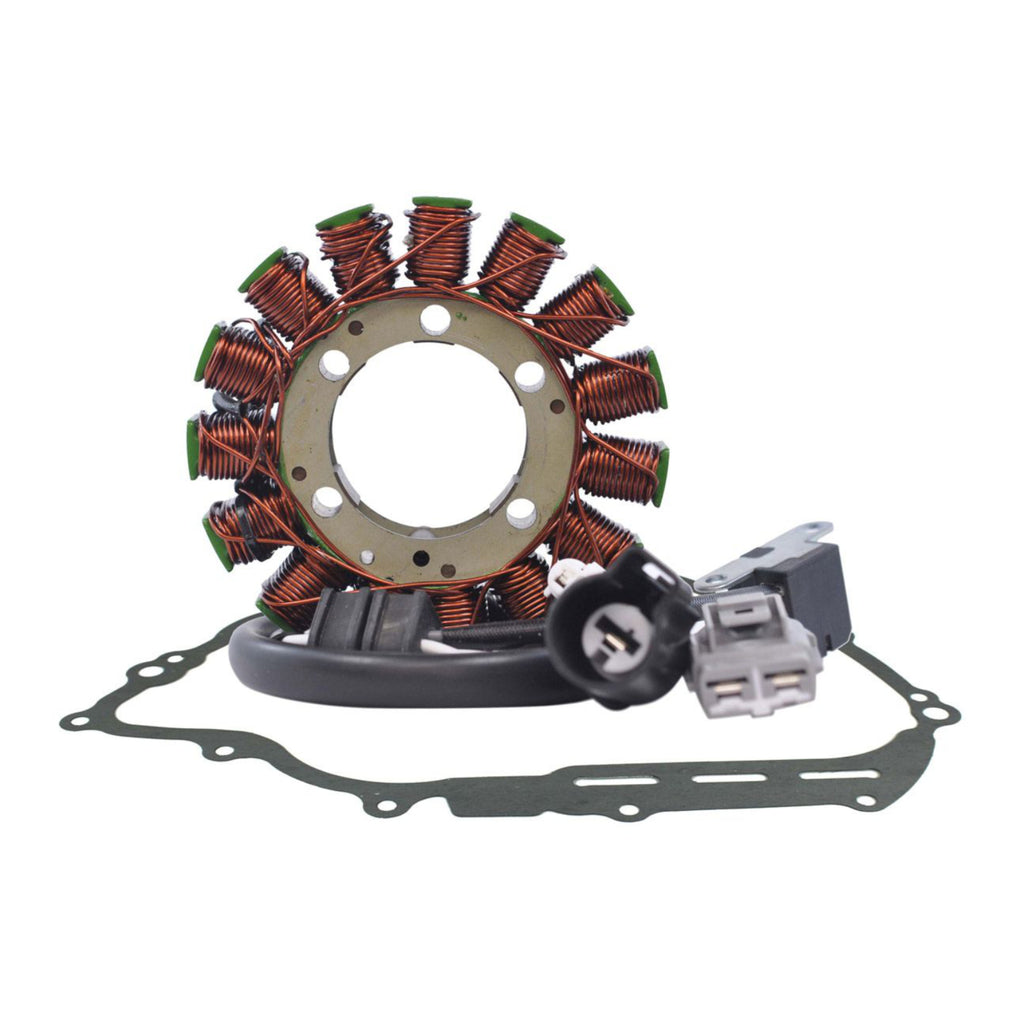

Stator:
- Highest grade of lamination materials
- Highest grade of copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

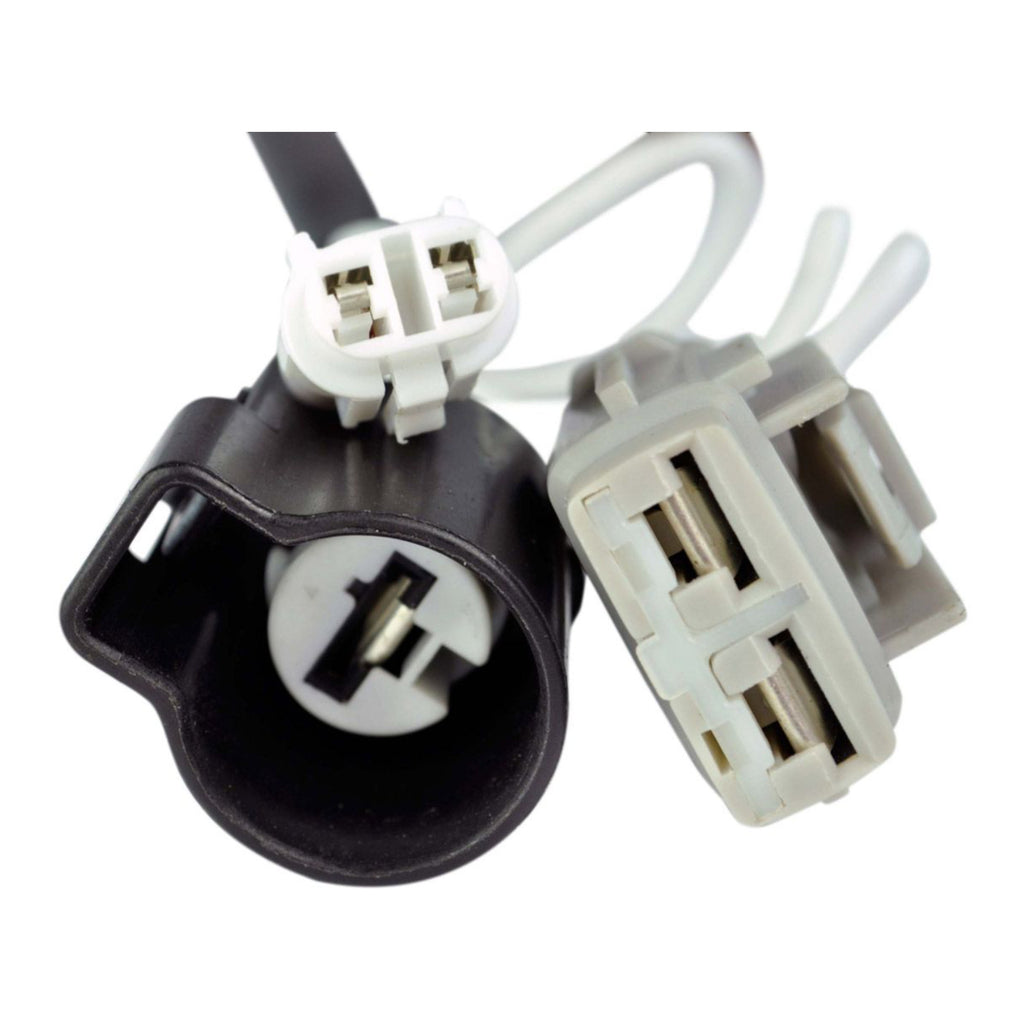

- Connector included
- Rubber grommet included
Specifications:
-
Stator Dimensions:
- Interior Diameter: 41 mm
- Exterior Diameter: 105 mm
- Thickness: 19 mm
- Length of Wires Stator to Grommet: 65 mm
- Length of Wires Grommet to Plug: 400 mm
- Length of Pickup Coil's Wire to Grommet: 65 mm
-
Other Specifications:
- Number of Wires: 5
- Number of Plugs: 3
- Number of Pins: 5
-
Wire to Wire Resistance:
- Alternator: White to White = 0.4 ohms +/- 20%
- Pickup: White to Grey = 500 ohms +/- 20%
