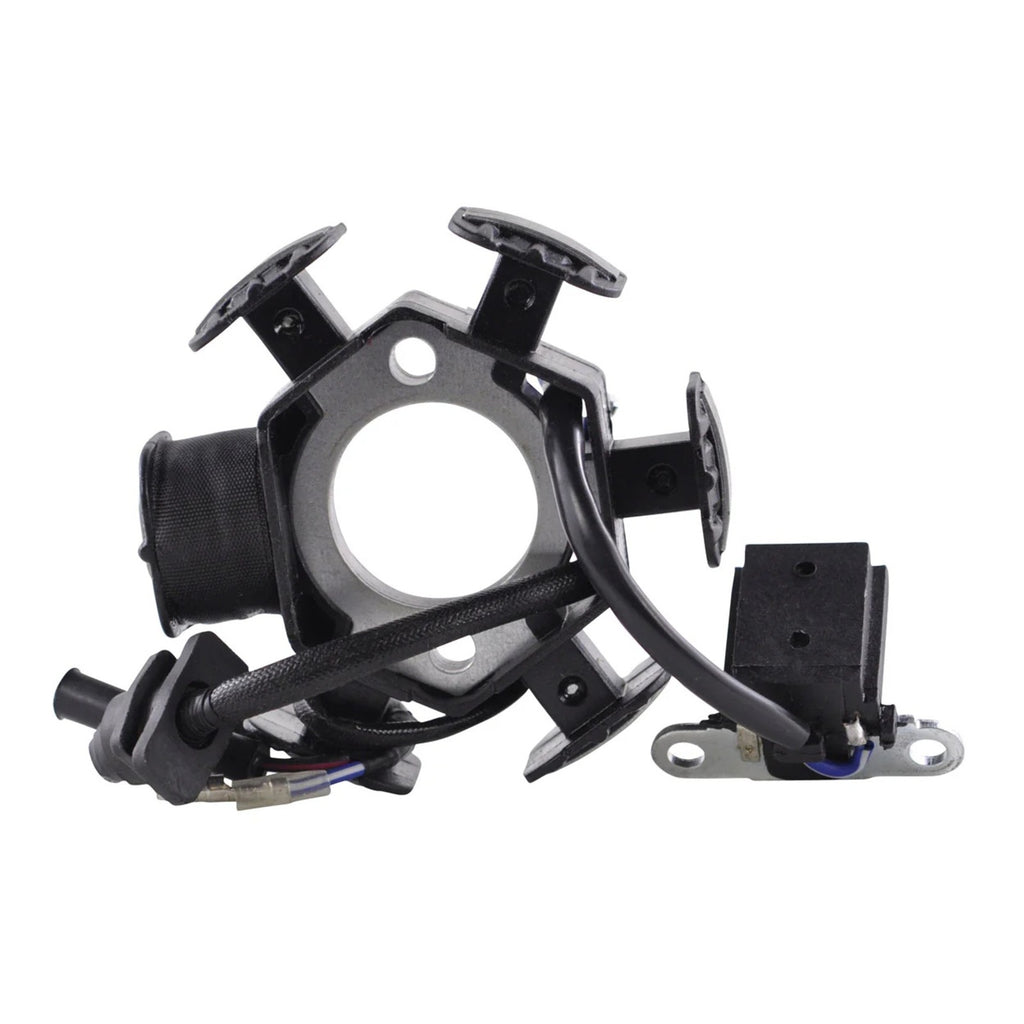

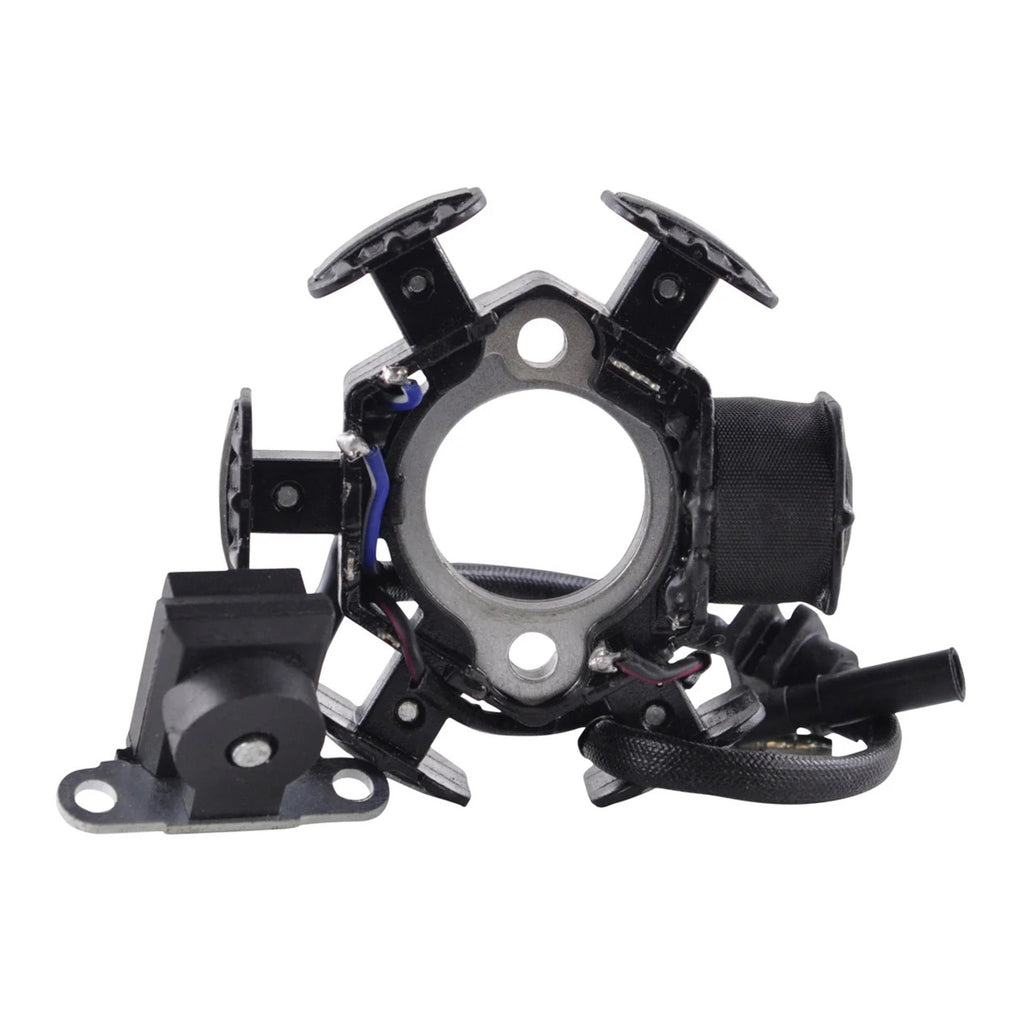

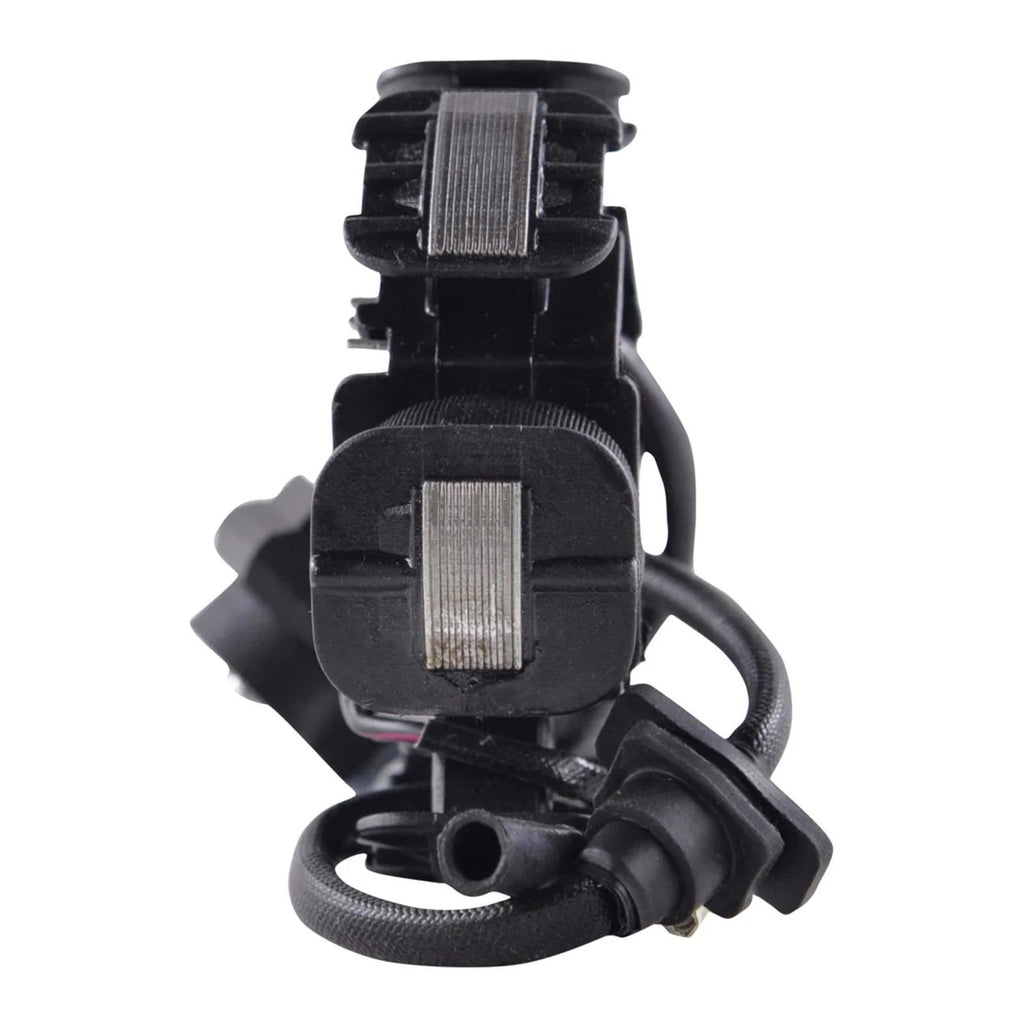

Brand new aftermarket stator. Direct replacement to your original unit.
Features:
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included.

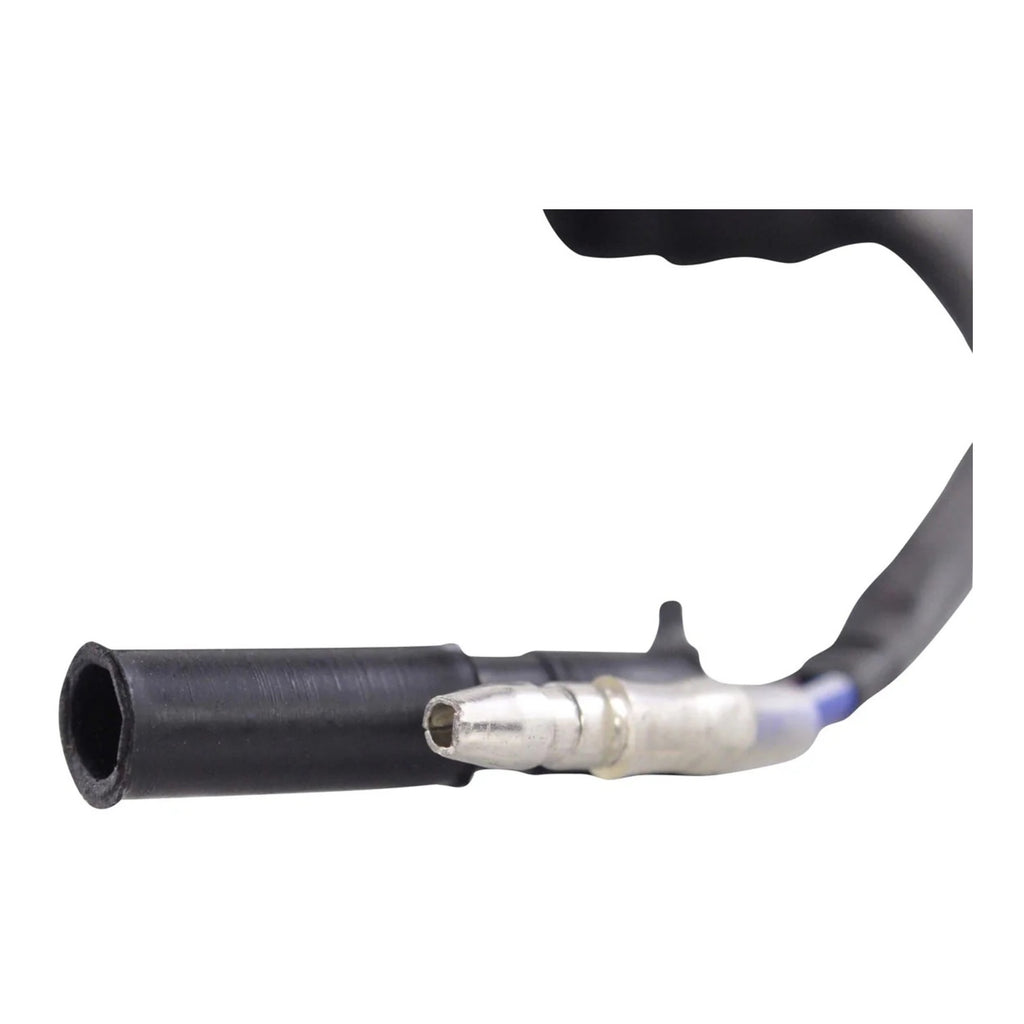

- Connector included.
- Rubber grommet included.
- All products shipped are tested.
Technical Data
Dimensions:
- Interior diameter: 29 mm
- Exterior diameter: 83 mm
- Thickness: 9 mm
- Length of wires stator to grommet: 40 mm
- Length of wires grommet to plug: 130 mm
- Length of pickup coil's wire to grommet: 60 mm
Other specifications:
- Number of wires: 2
- Number of plugs: 2
- Number of pins: 2
Wire-to-wire resistance:
- Pickup: Blue/Yellow to Bracket = 120 ohms +-20%
- Source: Black/Red to Ground = 715 ohms +-20%
